Towards a Model for Creating Comparable Intellectual Capital
Reports
Martin Nemetz
(University of Vienna, Faculty of Computer Science
Department of Knowledge and Business Engineering, Austria
martin.nemetz@dke.univie.ac.at)
Abstract: Since the beginning 1990s various concepts of intellectual
capital reports have been elaborated and their descriptions can be found
in both scientific and management literature. Their major task is the attempt
to cover intangible assets within an organisation or firm and to illustrate
the immense resources, which may be used to attain competitive advantages.
A major drawback of all presented intellectual capital reports is their
non-comparability due to the diversity of conceptions. Thus, it is not
possible to compare and evaluate the results of different firms within
an industry using diverse concepts of intellectual capital reports. This
paper presents an approach, which allows the creation of comparable intellectual
capital reports based on so called meta-indicators (or benchmarks). By
using the meta-modelling approach the intellectual capital reporting (ICR)
benchmark framework and a top-down procedure model (the intellectual capital
reporting (ICR) step model) are outlined and discussed in detail.
Keywords: Intellectual Capital, Intellectual Capital Reporting
(ICR), Intangible Assets, (Non-) Comparability, Meta-Modelling, Intellectual
Capital Reporting (ICR) Benchmark Framework, Intellectual Capital Reporting
(ICR) Step Model, Intellectual Capital Reporting (ICR) Meta Model
Categories: , D.2.1, D.2.2, D.2.9, D.4.1,
H.0, H.1.0, H.4.0
1 Introduction
Starting from the end of the 1980s the term "intellectual capital"
emerged rapidly in both some practitioner's heads and subsequently also
in academic literature [Roos 98], [Harrison
00] and [Lev 03]. Consequently, the public interest
in intellectual capital, a conglomerate of human capital, structural capital,
and relational (or customer) capital [Saint-Onge 96],
has been first raised by a handful of enterprises that began to investigate
potential effects of the management of their intellectual capital in the
beginning 1990s. This was the time, when companies like Skandia AFS in
Sweden and Dow Chemicals Inc. in the U.S. have appointed Directors for
Intellectual Capital for the first time [Edvinsson 96],
[Petrash 96]. This initial point of interest has steadily
grown over the years to an intellectual capital movement, as we can see
it nowadays. A nearly infinite number of best-practice scenarios and general
descriptions of how to manage intellectual capital has been presented and
eventually also published. Even renowned management journals, like the
"Business Week" or "Fortune" have dedicated cover stories
to the management of intellectual capital. Many authors attribute this
tendency to the changeover from the industrial to the information-based
age.
The importance of the former industrial era of the economy is decreasing
rapidly, which can be visualised when looking at the portion of tangible
assets within the GDP of western developed countries that is decreasing
dramatically [Drucker 95], [Guthrie
01], [Pulliam-Phillips 02], [Andriessen
04]. Instead, intangibles seem to gain more on importance for the valuation
of a firm, which can be illustrated by the fact that intangible goods account
for more than two thirds of the U.S. gross domestic product.
As stated above, many concepts of intellectual capital reports or intellectual
capital statements have been presented by various groups and organisations
[Deking 03], [Andriessen 04a].
Nowadays, there exist numerous frameworks, which cannot be overviewed easily.
To give just a few examples and to show also the variety of concepts, the
following list contains only a very small number of available intellectual
capital reporting concepts.
- Intellectual Capital Navigator: A simple approach developed
by Thomas A. Stewart to visualise an organisation's intellectual capital
with the aid of a radar chart [Stewart 97].
- Intangible Asset Monitor: A measurement method, which assists
managers to deal with knowledge-intensive departments or companies, respectively.
Karl-Erik Sveiby's framework zooms in three major areas whereas one is
again the reporting of intellectual assets and intellectual capital [Sveiby
97].
- Value Chain Blueprint: Baruch Lev developed his concept against
the background of the inadequacy of traditional financial balances, which
are not appropriate for depicting an organisation's intellectual capital
in all its details [Lev 03].
- Market-to-Book Ratio: This is a common known and very simple
conception, which assumes that intellectual capital is equal to the difference
between a company's stock value and its book value [Andriessen
04], [North 98].
This very short extract of available conceptions of intellectual capital
already highlights the difficulty, with which the research of intellectual
capital reporting has to deal. Additionally, the outcomes of an intellectual
capital report are typically not comparable as the variety of conceptions
of intellectual capital reporting and statements use completely different
underlying approaches. In other words, if two competing companies A and
B and/or potential investors want to evaluate the potential intellectual
capital of A and B, and both organisations do not apply the same method
of intellectual capital reporting, then a comparison of the obtained results
can in most cases not be executed.
One step in the direction of defining intellectual capital is its accepted
structure. Thus intellectual capital is divided into human capital, structural
capital and relational (or customer) capital [Saint-Onge
96]. Human capital describes the capabilities of employees to provide
solutions for customers, structural capital stands for organisational capabilities
that are necessary to meet market requirements, and relational capital
represents the penetration, coverage, and loyalty of both groups customers
and suppliers.
Although there is an escape from the difficulty of non-comparability
due to the agreed structure of intellectual capital, it is still a long
way to go. A potential solution may be found by entering the next level
in the research of intellectual capital reporting [Marr
04]. After more than a decade of creating diverse concepts of intellectual
capital reports, the focus should now rest on the unification and standardisation
of available intellectual capital approaches [Guthrie
01].
But it cannot be expected that it will be agreed upon a standardised
method for reporting intellectual capital in the foreseeable future. As
also the developments made in the fields of financial bookkeeping have
lasted more than 500 years [Stewart 94], another
approach may supply a small contribution to the solution of the above described
problem. Instead of attempting to standardise the available concepts it
seems more realistic to bundle these and derive comparable benchmarks out
of the concepts, which may allow comparing unique indicators between firms
or competitors, although they may apply two completely different intellectual
capital reporting concepts.
2 Intellectual Capital Reporting (ICR) Benchmark
Framework
The reporting of intellectual capital should not be executed in isolation
of the organisation's surroundings. Rather, it only makes sense when considering
the firm's strategy and overall objectives. Intellectual capital is not
the end of itself but a measurement to foresee potential future developments
within a firm [Wiig 97].
The hereby presented framework is a conceptual and method-independent
one, which allows its application on the one hand on different intellectual
capital reporting concepts and on the other also on firms from diverse
sectors. The method-independence assures that the framework does not again
cause the same problem of restricting the area of application as the variety
of intellectual capital reporting concepts does. The framework consists
of two core parts, namely the Intellectual Capital Reporting Step Model
and the Intellectual Capital Reporting Meta-Model. The advantage of complete
independence can be reached by applying the (meta-) modelling approach
that will be described in detail in the following subsections.
2.1 Intellectual Capital Reporting (ICR) Step Model
The presented approach is founded on already existing concepts of strategy
planning and setting of tactical targets as well as on the modelling of
business processes within enterprises. These two areas of research are
both well explored and are therefore not discussed in detail. Rather, the
focus rests on the definition of intellectual capital processes and the
selection and analysis of intellectual capital reporting benchmarks. To

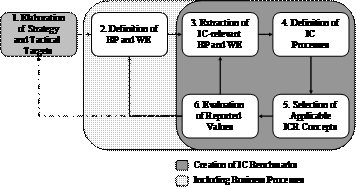

give an overview of the ICR Step Model, [fig. 1] depicts
the procedure model, which will be the basis for further discussion.
- Elaboration of Strategy and Tactical Targets: The firm's global
strategy has to be defined first as the intellectual capital report depends
on the strategic and tactical goals, which are specified in the organisation's
strategy. The development of a strategy can be elaborated in various ways.
One famous management method for strategy planning and realisation is the
balanced scorecard [Kaplan 92], [Kaplan
93], [Kaplan 96]. The hereby derived strategies
and goals are essential for the next parts as it represents the roadmap
for the following steps.
/Issue_1_3/towards_a_model_for/images/fig1.gif)
Figure 1: Procedure for the ICR Step Model
- Definition of Business Processes (BP) and Working Environments (WE):
Depending on the elaborated strategy the business processes and working
environments have to be modelled. The concepts of business process management
and business process modelling are widely known and have been documented
in various articles, as e.g. in [Karagiannis 96],
[Herbst 97], [Junginger 00],
[Junginger 01] and [Kühn 03].
- Extraction of Intellectual Capital (IC) Relevant BP and WE:
Based on the modelled business processes the process parts that may contain
intellectual capital-intensive activities have to be selected. Intellectual
capital-intensive parts are those that contain either human capital factors,
structural capital factors, relational capital factors, or combinations
of those. An example for an activity including a human capital factor would
be the creation of a marketing concept as the human brainpower cannot be
replaced easily by another person or a machine because the marketing specialist
has to know the firm's clientele, culture and other aspects for producing
an appealing marketing concept.
- Definition of IC Processes: Next to the selection of activities
containing intellectual assets, they should also be documented. This step
can be executed by using primary and secondary IC models whereas the latter
is composed of risk models, cost models, patent maps, and competence pattern
models. The primary model types contain the human factor models, the structural
factor models, and the relational factor models. So called benchmarks that
allow a comparison of different intellectual capital reports of two firms
are modelled within the primary and secondary model types. Therefore, step
four is somehow the core part of the ICR Step Model as it only delivers
adequate results when the benchmarks are modelled in an appropriate way.
These benchmarks have to be modelled on a meta-level so that they can be
applied on the basis of indicators on more than one intellectual capital
concept (see next step).
- Selection of Applicable ICR Concepts: Many intellectual capital
reporting concepts use analogue indicators. Indicators are management ratios
that describe intangible assets in a number or an interval. An example
for indicators would be "training expense per employee" or "share
of training hours". They often differ only in names and numbers, but
they can be converted into the above mentioned benchmarks and vice versa.
So the general idea rests on the transformation of indicators to meta-indicators
or benchmarks, which leads to a creation of a meta-model of an intellectual
capital report. From this meta-report many intellectual capital reports
can be derived, which allows the user to choose between different conceptions
of intellectual capital reports. By implementing this step the difficulty
of the non-comparability of different intellectual capital reporting concepts

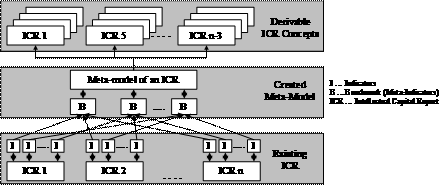

can be overcome. [Fig. 2] illustrates the conception
of the creation of a meta-model of an ICR based on existing intellectual
capital reports and consequential the deriving of other ICR concepts out
of the meta-model.
/Issue_1_3/towards_a_model_for/images/fig2.gif)
Figure 2: Deriving Various ICR from a Meta-Model of an ICR
- Evaluation of Reported Values: The last step of the procedure
for the ICR Step Model contains the obligatory evaluation of the performed
steps. Based on the results of the indicators of the derived intellectual
capital report, the values of the corresponding indicators can be detected.
It should be evaluated whether these indicators present the right information
concerning the firm's performance related to the firm's strategy and tactical
goals, which were defined earlier in step 1. If the indicator's results
are not satisfactory, then further measurements should be initiated to
counter potential negative impacts. If the indicators display satisfactory
outcomes, then regular and continuous improvements may help to guarantee
the retaining of the firm's performance.
2.2 The Intellectual Capital Reporting (ICR) Meta-Model
The concept of meta-modelling has been applied on various concepts and
projects and has gained wide acceptance [BOC 06].
The advantage of a meta-modelling platform rests on its flexibility, adaptability,
openness, and integration mechanisms of both contents and layout [Karagiannis
02]. This led to a wide area of applications on diverse industry sectors,
starting from business process modelling [Junginger 00]
up to the support for educational technologies and e-learning [Karagiannis
04].
2.2.1 The Meta-Modelling Concept
The basic architecture of the meta-modelling conception is a four-layered
construct, as it is depicted in [fig. 3] [Bézivin
97], [Atkinson 97], [Nemetz 06].
Those tiers for meta-modelling have been established in the course of the
introduction of the meta-objects facility (MOFTM) for the purpose of designing,
creating, and altering meta-models [Bézivin 01].
The presented concept is constructed as a hierarchy of model levels, whereas
each level represents one concrete instance of the above level (excluding
the top level). Those four levels are characterised as follows [Bézivin
97], [Atkinson 97], [Bézivin
01], [Atkinson 03]:
- M0: This is known as the bottom level of the whole
conception, meaning that it contains data. It covers any situation that
is uniquely defined in time and space and further is also represented by
a model from the next higher level (M1). In fact, these data
can be manipulated by the software as well as by the user. As indicated
in [fig. 3] such data may be for instance a company
named "Company A Ltd.", whose address is located in 76, River
Side, New Jersey.
- M1: Here, the model level is represented by models
of the data of level M0. This is thus the level, at which user models reside.
Therefore, the corresponding model in [fig. 3] contains
a class "firm" with the attributes "name"and "address".
- M2: This level represents the meta-model tier that
contains any meta-models. It holds a model that covers the information
of the model of M1, thus, it is referred to as a meta-model.
- M3: Finally, the last out of these four tiers contains
the meta-meta-models (also called meta2models). Here, the information
of the corresponding meta-models is stored.
/Issue_1_3/towards_a_model_for/images/fig3.gif)
Figure 3: Meta-Modelling Levels
Those four levels could certainly be extended by other meta-layers (as
e.g. a meta-meta-meta-model level M4) that would thus describe the underlying
tiers. But in the course of the introduction of the meta-modelling concept,
the majority of all relevant frameworks have limited their levels to four
[Atkinson 97]. In [fig. 3] the
column "contents" includes also a specification of languages
according to the respective layer. These (meta-)modelling languages are
required for the creation of models, meta-models, and meta²models,
respectively [Karagiannis 02]. In [fig.
4], the interdependencies of the modelling languages as well as the
appropriate models are illustrated [Strahringer 96].
When creating a model as a picture and/or description of an artefact of
the real world, then a modelling language is applied. This is defined by
a meta-model that is in turn a model of the model of level 1, as it is
characterised as a model of the applied modelling language. Thus, the meta-model
is formalised in a meta-modelling language that is defined in level 3,
the meta²model layer. Again, the meta²model is formalised in
a meta²modelling language that would be eventually defined in a higher
level model [Karagiannis 02], [Strahringer
96]. But as has been mentioned before, the meta-modelling concept is
limited to four layers, thus, a meta³model is not considered anymore.
/Issue_1_3/towards_a_model_for/images/fig4.gif)
Figure 4: (Meta-)Modelling Languages
Additionally, a (meta-)modelling language is composed of three major
categories: syntax, semantics, and notation [Karagiannis
02].
- Syntax: This is a grammar-based description of elements and
rules that are required for the creation of models.
- Semantics: The description of the meaning of models is
attained by the semantics. Furthermore, two sub-categories of
semantics, the semantic domain as well as the semantic mapping can be
distinguished. The former expresses the meaning of the semantics of
the modelling language with the aid of mathematical expressions,
ontologies, or the like. The latter however is a representation of the
connection that is established between the modelling language's syntax
and the semantic domain.
- Notation: The visual representation of the modelling language
is characterised by the notation.
The modelling language with all its components is one of the key
parts of a modelling method. In total, a modelling method consists of
three parts, namely the modelling language itself, a modelling
procedure, and mechanisms and algorithms. The modelling procedure
determines how the modelling language has to be applied to generate an
outcome, the model. The third category, the mechanisms and algorithms
contains mechanisms that allow the generation of queries, simulations,
reports, and the like, based on the meta-models that have been created
by applying a (meta-) modelling language. A meta-model is hence a
model of the modelling language [Karagiannis

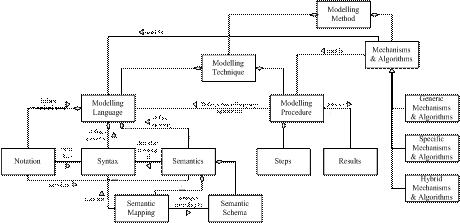

02]. [Fig. 5] summarises the components of a
modelling method and illustrates the interdependencies between the
modelling language, the modelling procedure as well as the mechanisms
and algorithms [Karagiannis 02].
/Issue_1_3/towards_a_model_for/images/fig5.gif)
Figure 5: Components of a Modelling Method
2.2.2 Components of the ICR Meta-Model
The ICR Meta-Model consists of seven model types whereas it can be
distinguished between primary and secondary model types. The former
contains the "human factor model", the "structural
factor model", and the "relational factor model".
The primary factor models are clustered according to the agreed
structure of intellectual capital, which has been described earlier in
this paper. The secondary model types are the "cost model",
the "risk model", the "patent map", and the
"competence pattern model".
The primary model types contain the benchmarks (or meta-indicators)
that are derived from the indicators of existing intellectual capital
reporting concepts. The benchmarks are grouped systematically within
the model types for the reason of usability and recovery by the
user. In the following the primary model types are presented
briefly.
The human factor meta-model consists of four major classes, namely
"employee", "competences",
"productivity/innovation", and "human factor
risk". These four categories contain relevant benchmarks for the
creation of the human capital part in an intellectual capital report.
Potential examples for benchmarks in the category "employee"
are "number of employees", "number of female
employees" or "training days per employee (per
year)". The structural factor meta-model is composed of five
categories, which are "research and development", "IT
infrastructure", "employee structure",
"administration", and "structural factor risk". In
the meta-model "relational factor" four classes are
designed: "market relevant data", "firm relevant
data", "customer relevant data", and "customer
factor risk".
Currently 280 indicators from eleven concepts of intellectual capital
reports have been considered, transformed into the meta-level, the so called
benchmarks, and eventually arranged into the above described categories.
As the three model types interact interdependently, they are all based
on the organisational structure of the investigated firm, i.e. every category
in each model type is arranged under an organisational unit (e.g. a department
or branch). With the aid of this structural design a change in one organisational
unit can be executed easily without affecting other departments (see [fig.
6]).
/Issue_1_3/towards_a_model_for/images/fig6.gif)
Figure 6: Meta-models of Human, Structural, and Relational
Factor Model
Next to the primary model types the other four meta-models shall be
presented briefly. Their main task is the support of establishing the link
between the already existing business processes and working environment
models [see section 2.1] and the above described human
factor, structural factor, and relational factor models. Therefore, the
secondary model types per se do not contain any benchmarks, which would
be applicable in an intellectual capital report. Rather they provide data
concerning costs of activities where intellectual capital is created, moved
or changed (cost model), appearing risks that arise from the elaboration
and usage of intellectual capital (risk model), patents that protect intellectual
capital (patents map), and competence patterns of (potential) employees
who are working mainly in intellectual capital-intensive processes (competence
pattern model). [Fig. 7] presents the meta-models of
the four secondary model types.
/Issue_1_3/towards_a_model_for/images/fig7.gif)
Figure 7: Meta-Models of Patent Map, Cost, Competence Pattern,
and Risk Model
The risk model type is a pool of potential risks that are referenced
to the human factor, structural factor, and relational factor models. The
modelled risks are classified in likelihood of their appearance and are
additionally connected directly to the cost model to predict potential
costs that may occur when the risk turns into reality. The cost model includes
next to a description of potential and effective costs also mathematical
operators, with which a combination of different costs can be calculated.
The competence pattern model refers to the employees and their role within
an organisation. This model type defines diverse competence patterns, which
include indices that are necessary to fulfil various activities in business
processes. The model distinguishes four kinds of indices, namely knowledge
indices, learning indices, skill indices, and education indices. Finally,
the patent map attaches the patents, which have been created in activities
that are intellectual capital-intensive, to different areas of application.

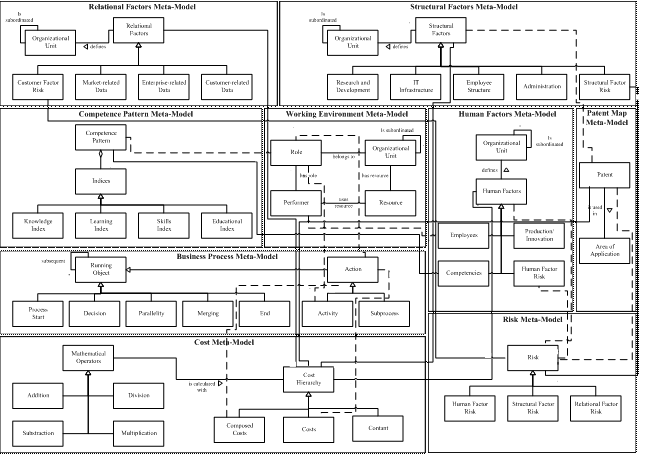

[Fig. 8] [Nemetz 06] depicts
all meta-models of the primary and secondary model types as well as the
interdependencies of these two meta-model categories with the business
process and working environment meta-models (as has been described in [section
2.1], steps 2 and 3).
/Issue_1_3/towards_a_model_for/images/fig8.gif)
Figure 8: All ICR-Meta-Models and their Interdependencies

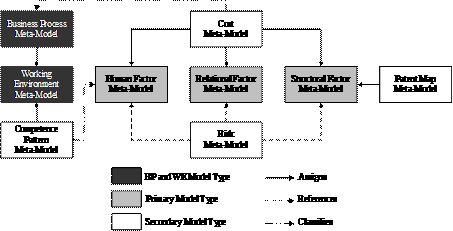

[Fig. 9] illustrates again the interdependencies
of the secondary model types on the human factor, structural factor and
relational factor model types as well as the interlinks between the business
process and working environment model types with the former ones [Nemetz
06] on a more general level.
/Issue_1_3/towards_a_model_for/images/fig9.gif)
Figure 9: The Interdependencies between the Different Model
Types
In the course of the practical realisation the meta-modelling platform
ADONIS® [BOC 06] has been applied by using the
languages ALL and AdoScript to create the presented meta-models. The architecture
of ADONIS® corresponds directly to the afore-presented four-layered
meta-modelling concept. The highest layer, the meta²modelling layer
is represented by the ADONIS® meta²model, which covers basic settings,
like abstract class and relationship definition, export/import functionalities,
and the like. The meta-modelling tier is composed of the afore-described
meta-models, which are the business process meta-model, the working environment
meta-model, the human factor meta-model, the structural factor meta-model,
the relational factor meta-model, the cost meta-model, the competence pattern
meta-model, the risk meta-model, and the patent map meta-model. Those have
been designed and further on also implemented with the aid of ALL and AdoScript
in the ADONIS® meta-modelling platform. These meta-models serve as
the foundation stone for the modelling of intellectual capital reports
as with the aid of these models, the interconnectivity between the enterprise's
daily business processes and the intellectual capital-intensive parts of
them can be depicted and eventually also reported. The fourth and last
layer, the data tier, covers the indicators themselves, i.e. the values
with which the management tries to support the development of an adequate
and efficient environment for intellectual capital-intensive process parts.

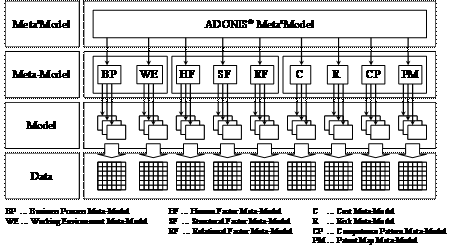

The data is therefore entered and stored in so called notebooks. [Fig.
10] summarises the four-layered conception for meta-modelling that
has been applied on ADONIS® and thus also on the creation of the afore-described
meta-models for intellectual capital reporting.
/Issue_1_3/towards_a_model_for/images/fig10.gif)
Figure 10: Four-Layer Conception in ADONIS® for Intellectual
Capital Reporting Meta-Models
In the following two examples are presented that show the creation of
classes and attributes on the one hand and the graphical representation
of the classes on the other by using the language ALL [Junginger
00]. The following programming code depicts exemplarily parts of the
implemented class "Composed costs" of the cost model.
Example 1 - Class "Composed costs" and its attributes:
Example 2 - Graphical representation of class "Composed costs":
GRAPHREP
AVAL k:"Cost type"
LINE x1:-.8cm y1:-1.15cm x2:.8cm y2:-1.15cm
LINE x1:-.8cm y1:-.6cm x2:.8cm y2:-.6cm
LINE x1:-.8cm y1:-.05cm x2:.8cm y2:-.05cm
FONT color:(col)
ATTR "Name" y:.8cm w:c:2.8cm h:t
FILL color:gold
POLYGON 16
[...]
3 Practical Example
Based on the Intellectual Capital Reporting Benchmark Framework that
has been presented in [section 2], the following paragraphs
will briefly introduce a practical example of the creation of intellectual
capital models based on the afore-mentioned meta-modelling platform ADONIS®
and its corresponding meta-models. [Fig. 11] depicts
a small excerpt of a fictional insurance company with the focus on the
department of customer services. In total, seven models are included in
this example:
- Business Process Model (BP): Exemplarily, a small business process
that covers the required activities to be executed as soon as a customer
request has been received, is shown.
- Working Environment Model (WE): A small part of an organisation
chart of the department of customer services is depicted, including also
the role construct.
- Risk Model (R): This represents a pool of potential risks that
may occur in the execution of the business process. Those risks are eventually
linked with the human factor model.
- Cost Model (C): Every management action for the establishment
and maintenance of intellectual capital causes costs, which are monitored
in the cost model.
- Competence Pattern Model (CP): A competence pattern for every
role within an enterprise is created, whereas it can be defined whether
learning and social skills as well as what educational background and expert
knowledge are required for people that cover a certain role.
- Patent Map (PM): The patent map visualises an output of knowledge
that has already been transferred into profits, as e.g. patents, licences,
and trademarks.
- Human Factor Model (HF): Finally, this model type covers human
factor benchmarks (meta-indicators) for the creation of intellectual capital
reports.
When referring to [fig. 1] and the assigned procedure
model of [section 2.1], the following steps have been
carried out for both the modelling and monitoring of intellectual capital
reporting factors for the fictional department of customer services. As
due to reasons of simplicity, it shall be assumed that the strategy (layer
1 in [fig. 1]) has already been clarified by the board
of directors and does thus not affect the example's structure and results.
Rather, the business process and working environment model have been created
(see also layer 2 in [fig. 1]), which leads directly
to layer 3 in [fig. 1], the identification of intellectual
capital-intensive parts of business processes. In the practical example,
this has been realised by marking the affected parts of the business process
with a small organisation chart, containing "HC" for required
human capital. Additionally, the primary and secondary model types (in
this practical example only the human factor model in the case of the primary
model types has been considered) have been modelled as well, whereas the
primary model types include benchmarks that are either financial-oriented
or a composition of intangible indicators that are calculated with the
aid of the secondary model types. The benchmarks themselves are entered
into so called notebooks by double-clicking on the corresponding element
in a certain model (see also layer 4 in fig. 1]). [Fig.
12] depicts such a notebook.
/Issue_1_3/towards_a_model_for/images/fig11.gif)
Figure 11: Practical Example
Finally, it is planned that those indicators can be exported independently
and eventually also assigned to various reports by classifying relevant
benchmarks (layer 5 in [fig. 1]). The assignment of
benchmarks and the automatic creation of reports represent the current
focus of work to be done.
/Issue_1_3/towards_a_model_for/images/fig12.gif)
Figure 12: Notebook
In the current state, an interface for visualising reports in form of
diagrams next to numbers is created. Those automatically created reports
should thus serve as key performance indicators, which do both measuring
intellectual capital factors and also support the management in the course
of the establishment and maintenance of intellectual capital and thus as
well generate an environment where it is possible to create and share knowledge
freely. This would in turn lead to higher profits for the corresponding
firm.
As has been stated above, the creation of the meta-models is completed.
Currently, the focus rests on the implementation of procedures, which would
allow generating automatically (parts of) intellectual capital reports
by selecting benchmarks via a query component.
4 Conclusions and Future Work
This paper highlights the difficulty of comparing diverse intellectual
capital reports due to different structures and indicators. With the application
of the meta-modelling concept, out of diverse intellectual capital reporting
concepts, an intellectual capital reporting meta-model is generated that
allows the derivation of benchmarks. These benchmarks are on a generic
level, which enables a direct comparison of results of intellectual capital
reports although originally completely different concepts are applied.
The intellectual capital reporting meta-model contains primary and secondary
model types whereas the latter support the first. At the current status
the model types are conceptualised and implemented whereas further research
questions concern the upgrading of the current status by a query component,
which would allow an automatic generation of an intellectual capital report
out of a meta-model of an intellectual capital report.
References
[Andriessen 04] Andriessen, D.: "Making Sense
of Intellectual Capital: Designing a Method for the Valuation of Intangibles";
Elsevier Butterworth-Heinemann, Oxford (2004)
[Andriessen 04a] Andriessen, D.: "IC Valuation
and Management"; Journal of Intellectual Capital, 5, 2 (2004), 230-242.
[Atkinson 97] Atkinson, C.: "Meta-Modeling
for Distributed Object Environments"; EDOC'97 Proceedings, First International,
Volume 24-26 (1997), 90-101.
[Atkinson 03] Atkinson, C., Kühne, T.: "Model-Driven
Development: A Metamodeling Foundation"; IEEE Software, 20, 5 (2003),
36-41.
[Bézivin 97] Bézivin, J., Lemesle,
R.: "Ontology-based Layered Semantics for Precise OA&D Modeling";
in Bosch, J., Mitchell, S. (eds.): "OO-Technology ECOOP'97 Workshop";
(1997), 151-155.
[Bézivin 01] Bézivin, J., Gerbé,
O.: "Towards a Precise Definition of OMG/MDA Framework"; Proc.
of the 16th Annual International Conference on Automated Software Engineering
(2001)
[BOC 06] BOC: "The BOC Meta-Modelling Concept";
Business Objectives Consulting ITC Ltd. http://www.boc-eu.com
(last access on June 21, 2006).
[Deking 03] Deking, I.: "Management des Intellectual
Capital"; Deutscher Universitäts-Verlag, Wiesbaden (2003)
[Drucker 95] Drucker, P.: "Managing In a Time
of Great Change"; Truman Talley Books/Dutton, New York (1995)
[Edvinsson 96] Edvinsson, L., Sullivan, P.: "Developing
a Model for Managing Intellectual Capital"; European Management Journal,
14 (1996), 356-364.
[Guthrie 01] Guthrie, J., Petty, R., Johanson,
U.: "Sunrise in the Knowledge Economy"; Accounting, Auditing
& Accountability Journal, 14, 4 (2001), 365-382.
[Harrison 00] Harrison, S., Sullivan, P.:
"Profiting from Intellectual Capital"; Journal of
Intellectual Capital, 1, 1 (2000), 33-46.
[Herbst 97] Herbst, J., Junginger, S.,
Kühn, H.: "Simulation in Financial Services with the
Business Process Management System ADONIS®"; in Hahn, W.,
Lehmann, A. (eds.): "Proceedings of the 9th European Simulation
Symposium and Exhibition"; SCS Publishing House, Passau (1997)
[Junginger 00] Junginger, S., Karagiannis, D.,
Kühn, H., Strobl, R.: "Ein
Geschäftsprozessmanagement-Werkzeug der nächsten Generation
&8212; ADONIS®: Konzeption und Anwendungen";
Wirtschaftsinformatik, 42, 5 (2000), 392-401.
[Junginger 01] Junginger, S., Rausch, T.,
Kühn, H.: "The ADONIS® - MQSeries WorkflowTM Coupling:
Integrated Design of Business Process and Executable Workflows";
in Baake, U. F., Herbst, J., Schwarz, J. (eds.): "Concurrent
Engineering: The Path to Electronic Business"; SCS Publication,
Valencia (2001)
[Kaplan 92] Kaplan, R. S., Norton, D. P.: "The
Balanced Scorecard: Measures That Drive Performance"; Harvard Business
Review, January-February (1992), 71-79.
[Kaplan 93] Kaplan, R. S., Norton, D. P.:
"Putting the Balanced Scorecard to Work"; Harvard Business
Review, September-October (1993), 134-142.
[Kaplan 96] Kaplan, R. S., Norton, D. P.: "Linking
the Balanced Scorecard to Strategy"; California Management Review,
39, 1 (1996), 53-79.
[Karagiannis 96] Karagiannis, D., Junginger, S.,
Strobl, R.: "Introduction to Business Process Management Systems Concepts";
in Scholz-Reiter, B., Stickel, E. (eds.): "Business Process Modelling";
Springer, Berlin (1996)
[Karagiannis 02] Karagiannis, D., Kühn, H.:
"Metamodelling Platforms"; in Bauknecht, K., Tjoa, A. M. (eds.):
"Proceedings of the Third International Conference EC-Web 2002 ? DEXA
2002"; Springer, Berlin (2002)
[Karagiannis 04] Karagiannis, D., Bajnai, J.: "eduXX
— The Instructional Design Platform"; Electronic Proceedings of EISTA04
- International Conference on Education and Information Systems: Technologies
and Applications, Florida (2004)
[Kühn 03] Kühn, H., Bayer, F., Junginger,
S., Karagiannis, D.: "Enterprise Model Integration"; in Bauknecht,
K., Tjoa, A. M., Quirchmayr, G. (eds.): "Proceedings of the 4th International
Conference EC-Web 2003 — DEXA 2003"; Springer, Prague (2003)
[Lev 03] Lev, B.: "What Then Must We Do?";
in Hand, J. R. M., Lev, B. (eds.): "Intangible Assets: Values, Measures
and Risks"; Oxford University Press, New York (2003)
[Marr 04] Marr, B., Chatzkel, J.: "Intellectual
Capital at the Crossroads: Managing, Measuring, and Reporting of IC";
Journal of Intellectual Capital, 5, 2 (2004), 224-229.
[Nemetz 06] Nemetz, M.: "A Meta-Model for Intellectual
Capital Reporting"; in Karagiannis, D., Reimer U. (eds.): "Proceedings
of the 6th International Conference on Practical Aspects of Knowledge Management";
Springer, Berlin (2006)
[North 98] North, K.: "Wissensorientierte Unternehmensführung";
Gabler, Wiesbaden (1998)
[Petrash 96] Petrash, G.: "Dow's Journey to
a Knowledge Value Management Culture"; European Management Journal,
14 (1996), 365-373.
[Pulliam-Phillips 02] Pulliam Phillips, P., Phillips,
J. J.: "Measuring and Monitoring Intellectual Capital"; in Phillips,
J. J., Pulliam-Phillips, P. (eds.): "Measuring Intellectual Capital";
American Society for Training & Development, Alexandria (2002)
[Roos 98] Roos, J.: "Exploring the Concept
of Intellectual Capital (IC)"; Long Range Planning, 31, 1 (1998),
150-153.
[Saint-Onge 96] Saint-Onge, H.: "Tacit Knowledge";
Strategy & Leadership, 24, 2 (1996), 10-14.
[Stewart 94] Stewart, T.A.: "Your company's
most valuable asset: Intellectual Capital"; Fortune, 130, 7 (1994),
68-74.
[Stewart 97] Stewart, T.A.: "Intellectual
Capital"; Nicholas Brealey Publishing, London (1997)
[Strahringer 96] Strahringer, S.:
"Metamodellierung als Instrument des Methodenvergleichs";
Shaker, Aachen (1996)
[Sveiby 97] Sveiby, K.E.: "The New
Organisational Wealth"; Berrett-Koehler Publishers, San Francisco
(1997)
[Wiig 97] Wiig, K. M.: "Integrating Intellectual
Capital and Knowledge Management"; Long Range Planning, 30, 3 (1997),
399-405.
|
