Considering the Knowledge Factor in Agile Software Development
Claudia Müller
(University of Potsdam, Germany
claudia.mueller@uni-potsdam.de
Julian Bahrs
(University of Potsdam, Germany
julian.bahrs@uni-potsdam.de)
Norbert Gronau
(University of Potsdam, Germany
norbert.gronau@uni-potsdam.de
Abstract: Agile software engineering methods provide a mean for
flexible software development. However, these agile methods oppose direct
steering and control as well as streamlining for process efficiency. In
this contribution such agile processes of software engineering are analysed
by applying a method known for its ability to encompass knowledge intensive
business processes: the KMDL® (Knowledge Modeling and Description Language).
Based on models created, potentials and actions leading towards improvements
are derived. Further the KMDL® method as well as a case study of its
application is introduced.
Keywords: Software Engineering, Knowledge Management, Modelling
Method, Model Validation and Analysis
Categories: D.2, D.2.9, H.3.0, I.2.4, I.6.4, J.4
1 Traditional and Agile Methods of Software Development
With increasing levels of globalisation competition becomes harder,
cycles of innovation are shortened and at the same time quality requirements
increase. This turbulent environment causes change in companies to be a
permanent condition [Andresen, 04]. All domains within
a company are affected, especially business processes, structures, and
information technology [Krüger, 98]. Regardless
of the industry, companies react to this situation with continual improvements
of their processes, amongst other things. Therefore, business process management
is of increased importance for a companies' competitive advantage.
In the last decades processes of software development companies were
affected by engineering methods. Software Engineering as an engineering
discipline affects all aspects of software production [Sommerville,
01]. Basic core processes of software development process are analysis,
design, implementation, and test, whereas project management, quality management,
and configuration management are support processes. These single processes
are united together to a complete, ideal software development process definition.
At present various such approaches exist.
These approaches essentially differ in degree of detail. Basic principles
in procedure are models like the Water Fall Model and the Spiral Model.
But there are strategies, which supply a detailed procedure and concrete
guidelines for the project execution, like the Rational Unified Process
[IBM, 05] and the V-Model XT [BMI,
05]. Altogether it is assessable that practical application shows:
the more static and one-dimensional a method is, the less applicable it
is within companies. This fact opposes the turbulent environment. In the
last few years software development community was challenged by a new movement
that addresses changes from a radically different perspective [Boehm,
05]. This new approach is best exemplified by its Agile Manifesto:
"[...] better ways of developing software [...]
Individuals and interactions over processes and tools
Working software over comprehensive documentation
Customer collaboration over contract negotiation
Responding to change over following a plan [...]." [AA,
01]
By introducing an agile method a company is able to produce software
with less documentation under conditions of rapid change to achieve higher
customer satisfaction. Agile methods encourage programmers to shed their
heavyweight process changes [Boehm, 05]. It is possible
to completely apply the Agile Manifesto in a company but this raises the
following difficulties: How to control the process without a process definition?
How to find out a contact person without knowing who is responsible for
what? How to measure a project by continuously changing requirements? The
truth is, as general, somewhere between Taylorism of traditionalists and
the "hacking mentality" of agilists [Boehm,
05].
The distinctive specialty of software development compared to traditional
industries, such as mechanical engineering, is the product. Software as
a product incorporates a high degree of knowledge of software developer.
This knowledge is particulate very abstract that means it does not follow
a guideline, or clear formula. Within mechanical engineering in contrast
a developer uses for example physical formulas, process instruction, or
values of mechanical strength. Therefore, the process of creating software
is knowledge intensive. This contribution displays how improvement of software
development processes is possible based on a knowledge management method
- KMDL® (Knowledge Modeling and Description Language) [KMDL,
05].
1.1 Conditions for Applying the Method
KMDL® is a method of process oriented knowledge management. Process
oriented knowledge management contributes to operational added value by
supporting, improving, and enhancing operational business processes [Remus,
02a]. The centres of interest are knowledge intensive business processes.
These processes can be classified by process oriented, employee-oriented,
and resource-oriented criteria. For identifying knowledge intensive processes
properties such as high complexity, weak degree of structure, communication-orientation,
and high leeway for decision-making are indicators. In the area of software
development processes possess these criteria very often. Especially in
small and medium-sized businesses (SMB) there is generally no consistent
software development process implemented. This is a further reason for
appearance of these criteria in these processes.
These process characteristics are the reason for assumptions required
to model knowledge work in this context. In this contribution KMDL®
is applied to record real instances of a process. The aim is not to document
processes for example for an organisation handbook or to gather instances
for example to deduce a reference process. In this case KMDL® is used
for modelling past based instances. It is a detailed modelling of not repeatable,
unique process instances. The modelling of processes is a workaround to
achieve a better understanding of basic problems within the company. The
generated models were used to identify repetitive problems in the development
processes. Furthermore, KMDL® was used for person related modelling.
The idea was to identify knowledge brokers or knowledge keepers within
the company. The target of all these efforts was the conception of knowledge
activities within software development processes. Of course, like other
process modelling methods, the KMDL® was applied as a communication
instrument and a description concept.
1.2 Proceeding in this Contribution
In the first part of this contribution the concept of KMDL® (Knowledge
Modeling and Description Language) is explained. Thereafter, the syntax
of modelling technique is introduced. In order to apply the modelling method
in real consulting projects the KMDL® procedural model is presented.
This procedural model has been validated in practice. To support modelling
and analysis work of consultants the K-Modeler and its most important features
are illustrated.
The second part of this contribution consists of a case study to demonstrate
the application of modelling technique and analysis of recorded models.
Three analysis concepts are introduced - reports, process patterns, and
analysis views (see section 3.4). Based on the KMDL®
procedural model main topics within the conducted project are clarified.
In the third part results of conducted project, which are currently
examined in a company, are discussed. This contribution concludes with
further considerations for application the modelling method.
2 Brief Introduction to KMDL®
The KMDL® (Knowledge Modeling and Description Language) method consists
of the concept, the description language and the procedural model to apply
the method in a consulting project. Within these sections underlying theory
and basic semantic of the modelling method is explained. The description
language depicts the syntax of language for example objects, their relations,
and possible values. Further explanations of the modelling method are available
in [Gronau, 04a] and [Gronau,
04b].
2.1 KMDL® Concept
The modelling technique KMDL® provides a framework for modelling
knowledge intensive business processes or knowledge intensive parts of
conventional business processes. KMDL® enables modelling of these processes
as a sequence of tasks and, additionally, knowledge conversion and flows
in and between them.
Supplementary to process-oriented view, knowledge generated and used
within processes is visualised. Consequently, a difference between explicit
and tacit knowledge is made [Polanyi, 58]: Tacit
knowledge is personal, context specific and difficult to communicate. In
contrast it is possible to hand over explicit knowledge in a formal and
systematic language [Nonaka, 95]. Along with this,
information used and generated within a knowledge intensive business process
is educible. Information is understood as a flow of messages, while knowledge
is generally created by this very flow of information, through anchoring
it in beliefs and commitments of its holder. This understanding emphasizes
that knowledge is essentially related to human action [Nonaka,
95].
In KMDL® process models, information and explicit knowledge are
represented as information objects. Tacit knowledge used within the process
is represented by knowledge objects. Both types should be examined together
because their interactions create new or extend existing knowledge. This
interdependency is referred to by Nonaka und Takeuchi as knowledge conversion
[Nonaka, 95]. Their model, which differentiates in
internalisation, externalisation, socialisation, and combination, proposes
a logical framework. The framework can be used to analyse tacit and explicit
knowledge as well as conversions between those types of knowledge and therefore
the creation of knowledge and the conditions and requirements for conversion
to happen. It serves as the basic framework for modelling a dynamic process
of knowledge creation within the authors' approach.
Internalization is the conversion of explicit knowledge into tacit knowledge.
It is closely related to learning-by-doing. Experiences gained through
socialization, externalization or combination are internalized and integrated
into one's own knowledge framework. By this, experiences can create know-how
or mental models and, according to this very important knowledge assets.
Externalization is the conversion from tacit to explicit knowledge.
By using metaphors, analogies or models one can express parts of one's
tacit knowledge in a manner which can be understood by others. It is the
essence of tacit knowledge which can then be handed over in a written form.
Yet it can be very difficult to externalize tacit knowledge. Often it is
simply impossible.
Socialization is a conversion from tacit knowledge of one person to
tacit knowledge of a different person. Often it is done by sharing experience:
Just like apprentices of a craftsman learn their skills by observation,
a knowledge-worker can learn needed or required abilities through on-the-job
training. Socialization does not necessarily require speaking or writing
a single word.
Combination is the conversion from explicit to explicit knowledge. Different
kinds of explicit knowledge can be combined through media such as telephone,
mail, word processing, or by reconfiguring, categorizing and adding new
information and context to the knowledge.
According to the authors, the creation of organizational knowledge needs
all types of knowledge conversion. To stimulate the process of knowledge
creation in a company knowledge management plays an important role.
Accordingly, the modelling of the used and generated information and
knowledge objects and the knowledge conversions enriches the sequential
description of knowledge intensive business processes. The modelling aims
at identifying process improvements but also at placing knowledge management
activities where they directly generate value, for which the captured knowledge
conversion can serve as important indicators.
2.2 KMDL® Description Language
Tasks are the basic framework of business process models. Sequences
of tasks determine the logical structure of the process. A task is defined
as an atomic transfer from input to output, represented by information
objects. These objects are connected through the flow of information. Tasks
are executed by roles. A role integrates textual or organisational related
activities of a function. A function is realized by a person (process actor)
or a group of persons.
/Issue_0_2/m_ller/images/fig1.gif)

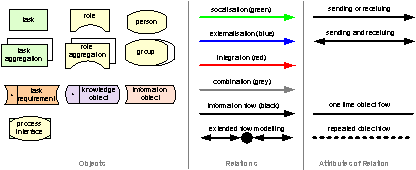

Figure 1: Objects and Relations
For each role, specific requirements (knowledge) are necessary to execute
a specific task in the desired manner and to generate required output using
specified input. A person who performs a task is assigned to a role. In
addition to information, knowledge is required to execute a task. This
knowledge is modelled as knowledge object. Each knowledge object is linked
to a person and is personal. Each knowledge object must have a reference
to a knowledge descriptor for describing which part of a knowledge domain
is covered in which quality. Every used and needed tacit capability is
represented by a knowledge object. Attributes are used for further description
of the respective objects. For instance each single knowledge and information
object is assigned to a specific topic through the attribute "knowledge
domain". This attribute enables hierarchical assignment of knowledge
and information objects and hence describing used explicit and tacit knowledge
within a considered process.
In addition, the description language allows visualising the flow of
knowledge. A socialisation is represented as a directed relation from a
knowledge object of one person to a knowledge object of another person.
A conversion is either a one time event (solid line) or repeated (dashed
line). The externalisation is modelled through the connection of at least
one knowledge object with an information object. The association of at
least two information objects and the generation of a new information object
are called combination. The internalisation starts with an information
object and ends with a knowledge object. Figure 1 shows
the graphical representation of KMDL® objects and relations.
2.3 KMDL® Procedural Model
A procedural model (see Figure 2) has been developed
to support applying the modelling technique during knowledge management
projects [Gronau, 04c]. Each phase supplies various
tools and methods for consultants. Basically the procedural model consists
of seven phases. During project acquisition it has to be validated whether
the KMDL® is a sufficient concept to fulfil the expectation of the
potential project partner. Applying KMDL® is appropriate if defined
conditions are met.
/Issue_0_2/m_ller/images/fig2.gif)

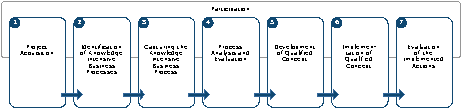

Figure 2: Phases of the Procedural Model
After the first phase of project acquisition in the second phase, project
definition, a workshop is recommended. Here, the object of investigation
has to be identified and defined. The consultant should have a sufficient
understanding of general conditions in the company. Within the next phase
capturing of specified processes is performed. For this phase a sub-model
which consists of three steps is supplied (see section
3.2). Process analysis and evaluation serves the identification of
weak spots within the process models. Based on these weak spots potentials
and optional steps to assess these potentials are deduced. It is possible
to define organisational, technical and personal (regarding the motivation)
actions. These are combined in phase five to a sustainable qualified concept.
The implementation of the qualified concept challenges the project partner.
For example, if there is a need to implement technical actions, this phase
may contain an entire software development project or a software selection
process. Such projects are complex by themselves. This is why phase seven
is essential: An evaluation of actions taken in which the project goals
are compared to project results.
2.4 Modelling and Analysis Tool: K-Modeler
The software tool K-Modeler [K-Modeler 05]
supports consultants during modelling, visualisation, analysis, and
evaluation of captured knowledge intensive business processes. The
current version is released in the open-source development environment
Eclipse [Eclipse 05]. Eclipse is only the core,
therefore further required plug-ins can be integrated with the
respective functionality. Both, eclipse and plug-ins, are based on the
development language Java [Java, 05]. The
K-Modeler user interface is clearly arranged, easy to use, and
individual customisations are possible. KMDL® based process models
are captured and changed in the model editor. KMDL® objects and
relations are available as template. By utilizing drag-and-drop
functions they can be moved from the object palette in the model
area. Editing of object attributes is carried out by either selecting
the respective object during modelling through a pop-up menu or by
using an attribute window. Navigation within complex process models is
supported through the process overview window. The navigator enables
switching between different process models, which are related via the
object "process interface". Wizards support users in
modelling as well as analysis and evaluation of process models. The
evaluation component generates individual definable reports. These can
be saved as HTML or XML documents.
3 Settings of the Project Preparation
The case introduced in this contribution, describes the analysis of
knowledge intensive processes followed by the definition of work improvements
in a software engineering company. The following report of this project
is structured in analogy to the procedural model.
3.1 Project Acquisition
The company looked at in this case has about 25 employees in software
development department. The project is initiated as part of the scientific
project M-WISE [M-WISE 05] targeting at validating
the application of KMDL® in software engineering industry. In addition,
the project sets up to achieve sustainable results by applying knowledge
management to the domain of software engineering. It is the goal of the
project to identify strength and weaknesses in knowledge processing in
this company. Further, knowledge management activities and/or changes in
software engineering processes which based on findings of the process analysis
should be suggested. These goals were discussed and defined at the kick-off
meeting, which is arranged as a workshop on KMDL®. In this workshop
fundamental concepts of KMDL® are explained to provide an overall understanding
of the methodology and project steps among the participating employees.
3.2 Identifying knowledge intensive business processes
In order to isolate knowledge intensive processes that are analysed
in this project a predefined list of criteria of knowledge intensive processes
was used [Remus, 02b]. Similar to product development
in other industries, a high number of processes involving knowledge work
were identified. This involved requirement elicitation and management,
design, and implementation, both for software products and project based
customer specific software solutions.
In order to narrow down the number of processes relevant for further
analysis, typical work procedures were discussed. It turned out, that in
this software company documentation was not highest priority. Rather, following
almost extreme programming procedures, most tasks were tackled in teams
involving informal communication. This lead to problems with requirement
changes at a later project stage, as no means of formal orientation is
provided.
In this contribution changes of requirements after the functional specification
are labelled as Emerging Functions (EF). EF appear for a number of reasons
during software projects at various points in time during project execution,
especially during the implementation phase. Solving challenges EF impose
is often critical for project success. Reasons for EF can be divided into
two main categories: shortcomings in functional specification and changes
necessary caused by the dynamic environment. Reasons for shortcomings of
functional specification are enormous complexity of software projects and
involve, but are not limited to, incomplete knowledge of customer requirements
and processes. Turbulences in environment may occur with all partners involved
in software development projects. For software supplier these may involve
rapidly developing new technologies and software engineering concepts as
well as organisational or procedural changes. In case of a client, reasons
involve organisational and work procedure changes as well as incomplete
knowledge or possible misunderstanding of functions of the software solution.
Dealing with EF is identified as knowledge intensive process by the
following characteristics: their weak process structure, significant autonomy
of process actors, multiple actors involved, process complexity and variability
as well as undefined actions and process results.
Existing concepts for software engineering have addressed EF mostly
as misconceptions during analysis or design phase and aim at reducing their
numbers [Sommerville, 01]. However, flexibility and
the ability to adopt to changed conditions are necessary for software companies.
Therefore, dealing efficiently with EF is an important skill for competitive
engineering of software and achieving customer satisfaction.
At the software company introduced in this case study workshops are
arranged between customer and supplier regularly throughout the project.
During these meetings the actual software solution is presented. It is
not uncommon that EF result directly from these meetings.
It was agreed with the company to further analyse processes that deal
with the design and implementation of EF.
3.3 Capturing Knowledge Intensive Processes
Four separate instances of processes dealing with EF were singled out
and further analysed. Though details of these processes are not discussed
in this contribution a rough description of each instance is provided to
provide a better project understanding:
- In a customer project adjustments to an existing function for deleting
data were required. This customer requirement was identified during a customer
presentation of the prototype software solution. Based upon knowledge gained
during presentation, an instance of an EF process was initialized and a
development task was assigned to an employee. In this case a workflow system
was used to keep track of current project status.
- This EF dealt with the design and implementation of a billing function,
which is needed due to changes in a customer's billing procedure. This
EF was initiated at a customer workshop, too. At first it was planned to
address this EF in a customer specific solution. This was later changed,
as a decision to redesign the standard product functions after a rather
coincidental intervention of a product manager was taken.
- This instance of an EF dealt with changing the platform of a database
to a different operating system. This requirement was well known during
functional specification but has not been addressed in detail, as it was
known that a solution has been created before. Nevertheless, the employees
were not involved in this process phase.
- This EF was initiated due to licensing costs for a third party product
and a customer request for improved usability of a document management
function. Ultimately, the decision was made to replace the third party
application by self-made functions for document management.
None of the instances were documented and most of them only had a name
and just a few people involved. Details were captured based on interviews
with actors of each instance. The method of interviews has its strengths
in quickly capturing realistic working procedures and company structures,
directly involving employees and the ability to reduce rejections to the
project during the interview sessions. Its downsides are the necessity
for qualified interviewers and the associated cost and time efforts. Prerequisites
for successful interviews are an atmosphere of trust, precise questions
and accurate documentation of the results [Krallmann,
02]. In this project partly structured interviews were used. In the
beginning of an interview questions aiming at generating an overview on
the instance are raised, e.g. through questions such as "Describe
all activities of this instance in the order of their occurrence".
In a later phase of the interview more specific questions are raised, such
as "Describe knowledge required to fulfil this task". Step by
step a precise documentation of the process as well as involved knowledge
activities were captured. Further, involved business roles and knowledge
objects were captured.
/Issue_0_2/m_ller/images/fig3.gif)
Figure 3: Phase of Capturing Knowledge intensive Business
Processes
The procedure of capturing a process follows three iterative steps:
Capturing the process in interviews, post-capturing of the process in which
interview results are documented in text or KMDL® models. And last,
the validation of the model by the involved process actors. This iterative
procedure assures accurate and realistic process models.
During the first iteration, a textual documentation of the process is
worked out. This eliminates methodical misunderstandings by the process
actor as well as process shortcomings in the understanding of the instance
by the modeller. In later iterations a KMDL® model is created. This
can be supported by the K-Modeler (see section 2.4).
K-Modeler assures the formal correctness of KMDL® models through real-time
syntax checking. Finally, this phase of the project results in a verified
and well documented KMDL® model of each of the described instances.
3.4 Process Analysis and Evaluation
The process analysis aims at identifying indicators of weaknesses within
the captured processes. Currently, three separate methodical families for
formal analysis of the KMDL® models have been developed: reports, process
patterns and views. They are accomplished by free analysis performed by
the process consultant.
/Issue_0_2/m_ller/images/fig4.gif)
Figure 4: Analysis of Knowledge intensive Business Processes
Reports, which can be generated automatically by the KMDL® modelling
tool K-Modeler, aggregate information on probabilities and number of occurrences
within the process model. Currently three reports are implemented:
- KMDL® Competence Report: This report generates a complete profile
of all knowledge objects associated with a process actor.
- KMDL® Task Coverage Report: This report matches knowledge requirements
of tasks with knowledge objects associated to process actors. The discrepancies
allow deducing conclusions e.g. for future training of employees.
- KMDL® Externalization Report: This report indicates which knowledge
objects have been partially documented.
As an example, with the models of this case, the KMDL® Externalisation
Report showed only little activity. This indicates that knowledge was often
not documented.
The second approach for analysing processes is based on Process Patterns
[Gronau, 04d]. These are a formal specification
of KMDL® object constellations, which have been associated to a weakness
before. Based on these predefined patterns that typically consist of five
to 20 objects and edges even complex indications of weaknesses can be detected
automatically with the help of K-Modeler. Five process pattern families
have been defined so far [Bahrs, 05]. As an example
the multi-step socialization pattern, part of the multi-step process pattern
family, is introduced. This pattern describes a situation in which knowledge
is passed on informally. This may lead to a "Chinese whisper"
effect, where information gets lost or changed. The pattern is defined
by a chain of socializations of knowledge objects representing the same
knowledge domain among at least three process actors. The object constellation
is marked red in Figure 5.

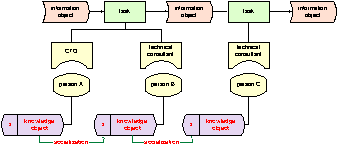

/Issue_0_2/m_ller/images/fig5.gif)
Figure 5: Multi Step Socialisation Pattern
Each pattern is further associated with a possible potential. In case
of the described pattern this would be either to improve means of socialisation
between the involved employees or to strengthen the documentation (codifying)
of parts of knowledge. In the described scenario, this pattern occurs repeatedly
among process instances. Later, an overall strategy which requires strengthening
codifying parts of knowledge was chosen.
Analysis views allow for investigation of process models in different
contexts and with different focus regarding special object constellations
and therefore help to identify weaknesses and potentials that can not be
recognized from process models directly. Currently three views exist: the
conversions view, the communication view and the view of information and
knowledge use.
The analysis views are introduced based on the example of a (for reasons
of anonymity falsified mock-up) process model similar to instance one,
in which adjustments to an existing deleting function were necessary. This
customer requirement was identified during a customer presentation of the
prototype software solution. The project manager of the delivering software
company did not document this requirement. However, based upon the knowledge
gained during the presentation, he initialized an instance of the EF process
and assigned a development task to person one. A workflow system was used
to keep track of the current project status. Among other status descriptions,
the ones used here are "development assignment accepted", "assignment
solved" and "test". At any point in time a responsible person
was assigned to the task. Figure 6 shows a cut-out
of the KMDL model.

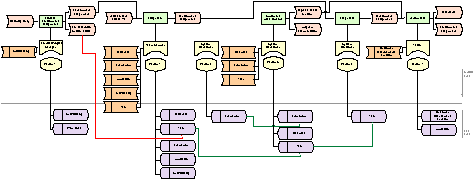

/Issue_0_2/m_ller/images/fig6.gif)
Figure 6: KMDL® Process Model of an EF instance
The view of knowledge conversions is based on the fact that the process
model is dividable into a tacit level, which consists of the generated
and used tacit knowledge and the explicit level, which contains the generated
and used information (see Figure 6). Only one type
of information objects participate in conversions. It is therefore necessary
to differentiate between pure information and explicit knowledge (definition
see section 2.1). Furthermore, each knowledge object
consists of an expressible and an inexpressible part, since tacit knowledge
includes cognitive as well as technical elements [Nonaka,
95]. Cognitive elements are based on the mental models, in which human
beings create working models by creating and manipulating analogies in
their minds. Technical elements include concrete know-how, crafts, and
skills. The latter is only the expressible part, which participates in
knowledge conversions. Figure 7 shows the conversion
view of the process instance introduced.
The model displays only objects that are directly involved in a knowledge
conversion. Therefore cognitive knowledge is not included. Because of this
simplification (methodical knowledge is part of the conversion node) the
nodes one and three are conversion nodes of combination. In the KMDL®
description language, a task normally is a combination of different knowledge
conversions. Due to the conversion view the task "adjust basic concept"
can be specified as a conversion node of combinations. Furthermore, the
task "assign task" consists of the conversion nodes three, four,
and five. In the process model the nature of the task "adjusted delete
function" was not visible. The conversion view, however, showed an
externalisation. The objective of the analysis is on the one hand to improve
the overview of the knowledge and information objects concerned and on
the other hand to gain a better understanding of the concurrent processes
within the task in order to improve the knowledge processes. Besides the
investigation of tasks, the analysis of the communication channels is necessary.
The nodes of conversion five and six were based on direct verbal communication
whereas for node eight a telephone is used. The objective of the analysis
is to improve or support the existing communication channels or to add
additional ones.

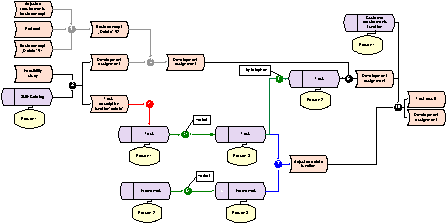

/Issue_0_2/m_ller/images/fig7.gif)
Figure 7: Conversion View of the EF process instance
The Communication View is used to analyze communication structure. Doing
so helps to gain information on how to improve communication between participants,
e.g. by improving the quality of communication channels. It also identifies
isolated individuals and persons who are not part of the explicit level
of the process (i.e. not involved in the official process), but who are
needed for the success of the process.
In the graphical presentation of the communication flow the axis of
abscissa represents the roles, the axis of ordinate the persons (see Figure
8). The displayed kind of communication is divided in planned (black,
solid line) and unplanned (green, dashed line) communication. Unplanned
communication is mostly based on socialisation in the tacit level of the
process. This is in contrast with planned communication that is component
of the explicit level. As soon as at least two persons are involved in
the execution of a task or two persons are connected over an information
flow, a planned communication takes place. The arrowheads show the direction
and the trigger of the communication respectively.
/Issue_0_2/m_ller/images/fig8.gif)
Figure 8: Communication View of the EF process instance
The View of Information and Knowledge Use aims at improving the usage
of existing information and knowledge described in the KMDL® process
model. It therefore matches task specific knowledge and information objects.
Three degrees of usage of this information and knowledge objects can be
found in KMDL process models:
- Mandatory, the information or knowledge described by this object is
required for fulfilling a task successfully
- Optional, using the information or knowledge object may enhance the
results or efficiency of the task
- Unused, the information or knowledge described is not relevant for
the task.
After generating this analysis view the current situation is presented
by a view, consisting of all information and knowledge objects within scope
listed on the axis of ordinate and each task within scope listed on the
axis of abscissa. For each matching point a degree of usage is defined,
as presented in Figure 9.

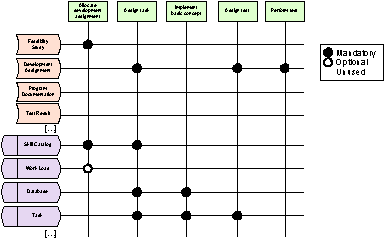

/Issue_0_2/m_ller/images/fig9.gif)
Figure 9: Knowledge and information use view (cut-out) of
an EF process instance
In a second step possible benefits are identified of information and
knowledge, e.g. increased task efficiency or improvements in quality of
task results. Therefore, pairs of tasks and knowledge objects for all objects
of the process model are examined. Through identifying the degree of relation
between knowledge or information and the task, its value or relevance for
the process is indicated. Further, suggestions for information flows or
knowledge transfers can be derived.
In the example provided (see Figure 9) information
and knowledge objects that were not used at all can be easily identified.
This applies to the information object "program documentation"
(which however may be used if analysing a different scope). An optional
knowledge object, "workload", is used to improve the outcome
of the task "allocate development assignment". It should be considered
to make "workload" a task requirement or find other methods of
making sure, that this knowledge is used and available for this task.
The analysis views confirmed previous indications of applied models
of process instances: The communication structure view shows that important
knowledge is passed on between employees in an informal manner while using
various different communication channels.
In addition to these formal approaches the assessment of additional
weaknesses and potentials is performed by the process consultant of the
project. The strength of this analysis is the integration of a greater
background (e.g. knowledge gained during the interviews) and to overcome
the limitations of context represented in models in general. Also, limitations
of the method were identified and later used for enhancement of KMDL®
and its formal analysis approaches (see section 4).
In this case, it turned out that design documents and methods differ throughout
the instances. Additionally, in instance two, an important potential was
discovered while dealing with the customization of the billing function:
during implementing the EF function as customer specific solution the decision
was made to enhance the general product with the features of the function.
In this case study a total number of 18 weaknesses and potentials were
identified, of which a few have been introduced for demonstration purposes.
Additional weaknesses not mentioned include but are not limited to redundancy
of work and unnecessary distribution of information.
3.5 Development of the Qualified Concept
Each weakness bears a potential for improvement. In order to assess
this potential necessary steps were derived individually for each potential.
In a second step similar measures were grouped. Finally three central actions
were suggested to the software company. Their relevance for the process
was assessed by matching the potentials to the suggested measure. A summary
of these arrangements is given below:
- Increasing the level and quality of documentation. Throughout the process
this will provide improved orientation within EF, and even more important,
after an instance of EF is implemented. It is not the aim to reduce the
level of successful informal knowledge transfer. Rather the goal addressed
here is to ensure a level of documentation, which allows for a reuse of
code and already solved problems (and with that work) which have been addressed
before. Therefore each EF should be formally documented (e.g. reason, target,
solution) together with employees involved. Predefined templates and quality
guidelines for these documents need to be designed and used to achieve
a sufficient documentation quality.
- The introduced four instances show individual task sequences. Moreover,
they differ in software engineering methods applied. This is due to the
flexibility informal knowledge and information processing offers and typical
for knowledge intensive processes. However, a balance between flexibility
and structuring needs to be found that provides a minimum of orientation.
This is not only to increase process transparency to employees but also
a prerequisite for designing or customizing a software tool, which is a
goal of the project. Last, designing a process guideline can be a vehicle
to introduce additional process steps such as the decision to implement
a function resulting of an EF as product improvement.
- Implementing a formal skill management for skill based task delegation.
It was found that in multiple instances employees were assigned tasks that
(a) others have addressed in previous EF or (b) that are delegated to employees
that need to gain specific knowledge first. This could be addressed by
incorporating training needs or other actions to support this knowledge
transfer.
In respect to the original goal of the project, the introduction of
knowledge management software, the common ground of the process instances
needed to be addressed. This was done by creating abstract process schemes.
This degree of abstractness was achieved by switching to wider concepts
(e.g. EF design specification instead of design of calculation function
or other specifics to an instance). Subsequently a process scheme that
integrates all process paths found in the instances was derived. This was
done by virtually blending the instance models into each other keeping
their individual task sequences as alternatives. This was followed by an
analysis of path frequencies. By doing so, exceptional paths and instance
specific activities could be identified and removed from the schematic
model. As a result major activities were identified.
Based on these activities, combined with the introduced suggestions
for improvement requirements for a software system to support dealing with
EF were defined in a workshop by the software company:
- shared access to one system (number of communication channels)
- consistent communication structures and media
- well defined procedures
- simultaneous acquisition of problem and solution of EF
- easy access to detailed information about each activity (task) and
EF
- structuring of tasks
- clearly defined interfaces to external systems (e.g. customer relationship
software)
- description of software components and employee's responsibilities
3.6 Implementation of the Qualified Concept
At current various standard software solutions for bug tracking or issue
tracking are evaluated against these criteria. Besides the listed requirements
this software needs to be customizable regarding the ability to integrate
the identified typical task sequences of the EF process instances. The
solutions should offer routing and handling of EF related tasks in a flexible,
but transparent manner. Further, the software is used to create a documentation
of each EF, adding basic information during EF implementation on a semi
automated basis (such as employees involved and activities performed).
Last, this software has to be integrated into existing software development
solutions as well as the existing customer relationship software.
3.7 Evaluation of the Implemented Process
It is the goal to maintain the identified strength of the software company
that was determined within this project: the exceptional ability to share
knowledge informally, which is a prerequisite for dealing with the various
challenges of EF in a flexible and appropriate matter. The solution envisioned
here shifts the balance between documentation and informal action towards
codified knowledge.
As explained, several spots of weakness and potentials indicated that
a minimum of documentation provides necessary information and therefore
is expected to lead to an overall process improvement. However, this assumption
can only be ultimately validated after the project solution is implemented.
4 Evaluation of the preliminary Project Results
This section addresses the impact of the overall project on the software
company's ability to deal with EF. Further, it is addressed how modelling
and analysis of knowledge intensive processes with KMDL® is appropriate
to improve software engineering tasks.
The bottom-up driven approach of modelling multiple instances of a knowledge
intensive process has proven to be a working approach to assess details
of procedures in their existing variety. After all, the described method
to derive an abstract process model using a frequency analysis allows for
a systematic identification of typical task procedures of knowledge intensive
processes. With the given properties of knowledge intensive processes this
already is an insight. In this case the interview technique has proven
to be a reliable concept to assess knowledge related activities as well
as to actually gain information on the informal level. In applying KMDL®
the iterative modelling procedure has proven to be a valuable instrument
to create a shared understanding of the process between interviewer and
process actors. However, results from the interviews heavily depend on
the level of trust. The level of detail obtained partially depends on the
time between the instance and the interview. Finally, this method is rather
time consuming.
Similar to other process modelling methods, KMDL® models contain
only a fragment of reality. One of the major purposes of such methods is
to help to clearly communicate the processes [Kagermann,
05]. In addition, even though KMDL® objects are clearly defined,
process models may differ slightly depending on the modeller. With that
said, possibilities of formal analysis approaches are generally limited.
They are to be considered as a tool, but not as a fully automated process
analysis. The informal analysis through experts from the company as well
as through KMDL® consultants allows assessing context and background,
which are not represented in the model. This analysis leads to less systematic
recognition of weaknesses and potentials.
Based on the experience from the case described, alterations in the
specification of the KMDL® method were derived (and verified in practical
application), that include:
- Development of a form for structured interviews that can be customized
to the requirements of a company or scenario
- Development of modelling guidelines as well as style guidelines to
decrease dependency of the consultant
- Semantic structuring of knowledge objects and task requirements
- Specification of formal methods of analysis (as described)
Further, additional improvements of the KMDL® method are planned
that enhance the 'fragment of reality' represented in the model. Other
improvements are concepts for generalization and specification as well
as aggregation of objects [KMDL, 05].
Current subject of research is, amongst others, a methodology to perform
a ranking of potentials as well as measures defined.
Regarding the software company significant findings have already been
derived from the KMDL® project. These include gaining critical knowledge
and a significantly increased level of transparency on the ability to deal
with EF. At current, major strengths as well as indicators for corporate
culture have been identified. In addition drawbacks of predominantly informal
knowledge transfers are realized. This allows, even at this early project
stage, to focus on critical aspects of EF implementation.
5 Further Considerations for Application
This contribution shows a path for improving software development processes
by applying a process oriented knowledge modelling method. In order to
assess and understand the weaknesses and to use the strengths of the company
under consideration the KMDL® provides a useful framework.
Nevertheless, the remaining challenge is to support knowledge intensive
processes properly. This is due to process flexibility and their uniqueness.
In addition to a formal process definition there are informal processes
in companies. These processes work independently, i.e. they are only affected
peripherally by formal specifications of procedures. The communication
of process participants, existing social networks, and the company's culture
are important factors for the project success. Traditional modelling methods
do not consider the specialities of human factor in the business process.
For knowledge intensive processes the individual is only conditionally
replaceable.
The KMDL® focuses on knowledge. Knowledge is always bound to a person.
Therefore, modelling this knowledge also captures the informal processes.
The process description does not stick to the organisational level. The
individual level for knowledge creation and distribution should not be
underestimated within the corporate knowledge strategy.
References
[AA, 01] Agile Alliance: "Manifesto for Agile
Software Development" http://agilemanifesto.org/.
[Abecker, 02] A. Abecker, K. Hinkelmann, H. Maus,
H-J. Müller: Integrationspotenziale für Geschäftsprozesse
und Wissensmanagement (in German), In: A. Abecker, K. Hinkelmann, H. Maus,
H.J. Müller (eds.): Geschäftsprozessorientiertes Wissensmanagement
(in German), Springer-Verlag, Berlin Heidelberg, New York, 2002, 1-22.
[Allweyer, 98] T. Allweyer. Knowledge Process Redesign,
Saarbrücken, 1998.
[Andresen, 04] K. Andresen: Developing Adaptability
in the domain of Information Technology. In Röck, H. (edt.): Perspectives
in Business Informatics Research. Shaker Verlag 2004, 15-21.
[Bahrs, 05] J. Bahrs; N. Gronau; C. Müller,
S. Schmid: Modellierung von Wissenskonversionen entlang wissensintensiver
Geschäftsprozesse (in German). BIT: Banking and Information Technology,
1, 2005, 21-31.
[BMI, 05] Federal Ministry of Interior: Das V-Modell
(in German). http://www.kbst.bund.de/-,279/V-Modell.htm.
[Boehm, 05] B. Boehm, R. Turner: Balancing Agility
and Discipline. 2nd ed. Addison-Wesley Boston 2005.
[Eclipse, 05] eclipse.org, 2005, http://www.eclipse.org/.
[Gronau, 04a] N. Gronau, E. Weber: Management
of Knowledge Intensive Business Processes. In: J. Desel, B. Pernici, M.
Weske, (edt.): Business Process Management, Springer, Heidelberg, 2004.
[Gronau, 04b] N. Gronau; E. Weber: Modeling of
Knowledge Intensive Business Processes with the Declaration Language KMDL.
In: Mehdi Khosrow-Pour (edt.): Innovations Through Information Technology,
Proceedings of the 14th Information Resources Management Association International
Conference, Idea Group Inc., 2004.
[Gronau, 04c] N. Gronau, C. Müller, M. Uslar:
The KMDL Knowledge Management Approach: Integrating Knowledge Conversions
and Business Process Modeling, In: D. Karagiannis, U. Reimer (eds.): Practical
Aspects of Knowledge Management, Springer-Verlag, Berlin, Heidelberg, 2004,
1-11.
[Gronau, 04d] N. Gronau, M. Uslar: Antipattern
zur Potenzial-Analyse mittels KMDL in wissensintensiven Prozessen im Software
Engineering (in German). In: N. Gronau, B. Petkoff, T. Schildhauer (eds.):
Wissensmanagement - Wandel, Wertschöpfung, Wachstum: Tagungsband zur
KnowTech 2004, München, 18. - 19. Oktober 2004 im Rahmen der Systems
2004, Internationales Congress Center München, GITO-Verlag, Berlin,
2004, 233-246.
[Heisig, 02] P. Heisig. GPO-WM - Methode und Werkzeuge
zum geschäftsprozessorientierten Wissensmanagement (in German), In
A. Abecker, K. Hinkelmann, H. Maus, H.J. Müller (edt.): Geschäftsprozessorientiertes
Wissensmanagement (in German), Springer-Verlag, Berlin Heidelberg, New
York, 2002, 47-64.
[Heisig, 03] P. Heisig: Wissensmanagement in industriellen
Geschäftsprozessen (in German). Industrie Management 3, Gito-Verlag,
Berlin, 2003, 22-25.
[IBM, 05] IBM: Rational Unified Process. http://www-306.ibm.com/software/awdtools/rup/.
[Java, 05] Sun Microsystems, Inc.: Java Technology
2005 http://java.sun.com/.
[K-Modeler] K-Modeler. http://www.k-modeler.de.
[Kagermann, 05] H. Kagermann, P. Zencke. Die Renaissance
des Geschäftsprozess-Managements - Von Modellierungswerkzeugen zur
Prozessplattform für den Wandel (in German). In: IM Information Management
& Consulting, spezial issue 2005, imc information multimedia communication
AG, Saarbrücken, 2005, 6-12.
[KMDL, 05] Knowledge Modeling and Description Language.
http://www.kmdl.de
[Krallmann, 02] H. Krallmann, H. Frank,
N. Gronau: Systemanalyse im Unternehmen (in German). 4th
ed. Oldenbourgh Verlag München Wien 2002.
[Krüger, 98] W. Krüger: Management permanenten
Wandels (in German); In: H. Glaser, E.F. Schröder, A.V. Werder (ed.):
Organisation im Wandel der Märkte (in German), Wiesbaden 1998, 227-249.
[M-WISE, 05] M-WISE 2005 http://www.m-wise.de.
[Nonaka, 95] I. Nonaka, H. Takeuchi: The Knowledge-Creating
Company. How Japanese Companies Create the Dynamics of Innovation, Oxford
University Press, New York, 1995.
[Polanyi, 58] M. Polanyi: Personal Knowledge -
Towards a Post-Critical Philosophy, The University of Chicago Press, Chicago,
1958.
[Remus, 02a] U. Remus. Integrierte Prozess- und
Kommunikationsmodellierung zur Verbesserung von wissensintensiven Geschäftsprozessen
(in German), In A. Abecker (ed.): Geschäftsprozessorientiertes Wissensmanagement
(in German), Springer-Verlag, Berlin, Heidelberg, New York, 2002.
[Remus, 02b] U. Remus. Process oriented knowledge
management, Concepts and modeling. PhD thesis, University of Regensburg,
Germany, Regensburg, 2002.
[Sommerville, 01] I. Sommerville:
Softwareengineering. 6th ed. Pearson München,
2001.
|
